5.56x30mm MARS

From Firearm Wiki: The Internet Gun Encyclopedia
Jump to navigation Jump to search

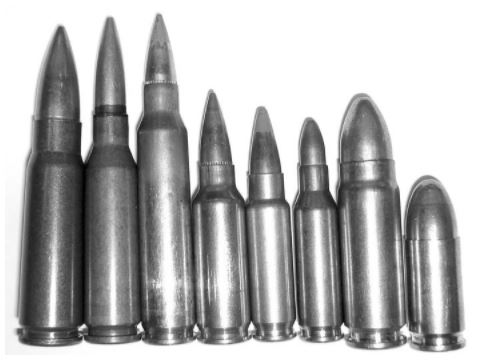

A cartridge comparison showing several calibers, including experimental Colt 5.56x30mm MARS and 9x30mm MARS.
A cartridge comparison showing major intermediate cartridges, as well as various PDW-type cartridges including Colt's experimental 5.56x30mm MARS (fourth in line), as well as their 9x30mm MARS (second from right).

The 5.56x30mm MARS was a PDW / Assault Rifle cartridge created by Colt during the development of their experimental Colt MARS ("Mini Assault Rifle System") program. It was created by cutting down 5.56 NATO cases, and re-forming with custom dies during the program, and continued to use .224 caliber bullets. It never saw any major use, adoption or otherwise.

Ultimately, the program was scrapped along with the 5.56x30mm cartridge.

A counterpart to this round also existed - the 9x30mm MARS. It used 10mm Magnum cases, necked down to accept .355 caliber projectiles (as is used by the 9mm Luger).

Development

According to Colt, this new cartridge was developed "to enhance accuracy, range and lethality over current cartridges such as the 9mm NATO and 5.7x28mm, and current small submachine guns in general. It used ball pistol-type powder to achieve high velocities in the platform's short 10.5 inch barrel. It was to be effective out to 300 meters or beyond.

The 5.56x30 was a wildcat cartridge that never saw any real production. It was only ever hand-loaded by Michael Harris during testing of the new platform by cutting down cases and using custom dies.

Ballistic Performance

Bullet Weight / Type Velocity Muzzle Energy
55 Gr. BT (M193) 2,620 fps 838 ft lbs

Note: It was found that there was excessive pressure with the cartridge and case was prone to bulging or rupture.

Other Experimentation

(Info sourced from Small Arms Review, referenced below.)

Colt experimented with other projectiles such as the M855 (62 gr. boat tail w/ steel core penetrator), as well as with tracers. They noted that the cartridge could basically be loaded with any mission-specific projectile needed, including armor piercing, hollow points, soft points and so on.

They opted to load the cartridge with magnum pistol-type ball propellant in order to achieve higher velocities in the MARS' short 10.5" barrel. Projectiles were able to penetrate kevlar helmets and vests at 300 meters.

References

"Colt's 5.56x30 MARS (Mini Assault Rifle System) Program" - An in-depth analysis of Colt's "MARS" program by Christopher R. Bartocci of Small Arms Review. Includes information on detailed changes to the AR-15 / M16 rifle platform, as well as information for the 5.56x30mm MARS and 9x30mm MARS experimental cartridges.

The Firearm Blog: - An excellent article by Nathaniel F. at The Firearm Blog, which further discusses the 5.56x30, as well as the MARS project. Most notable are the trajectory comparisons shown, compared to other cartridges.
